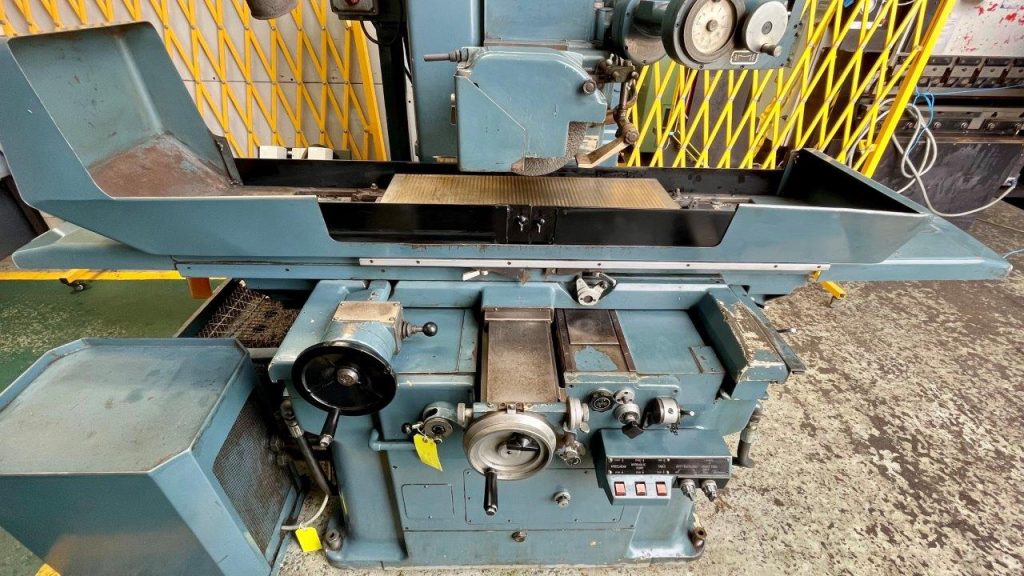

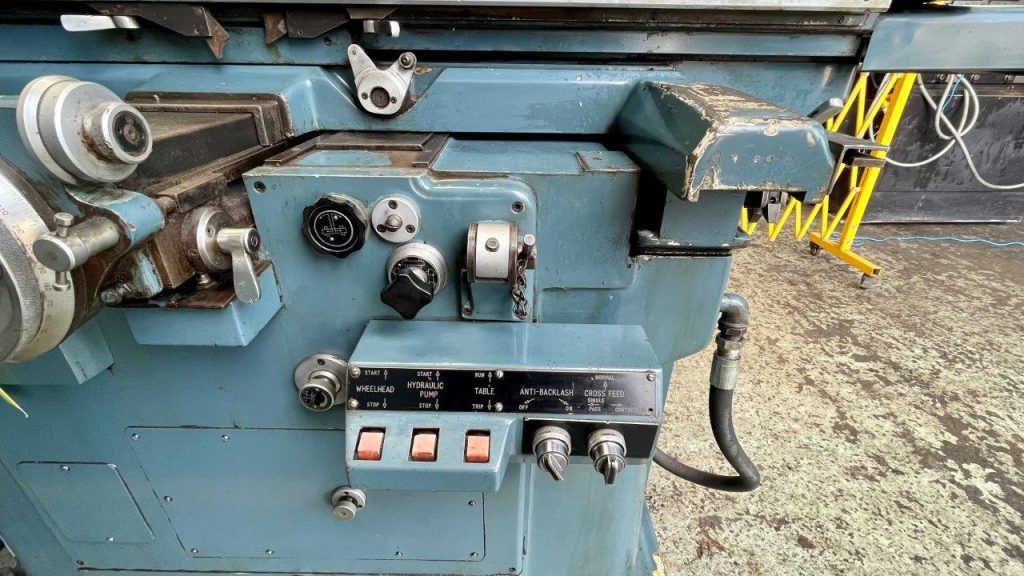

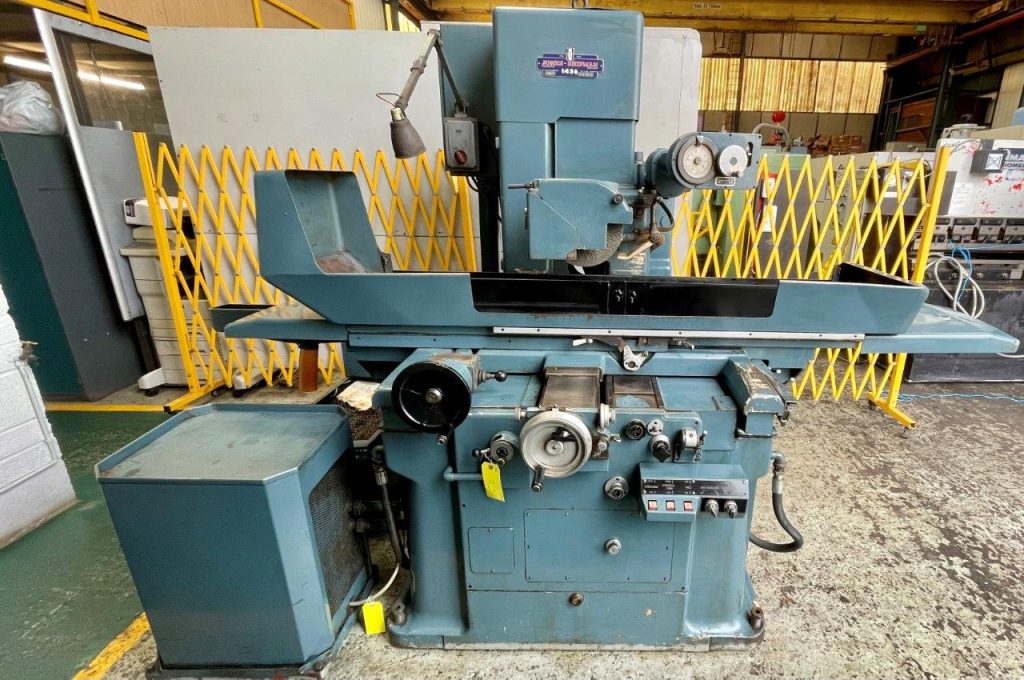

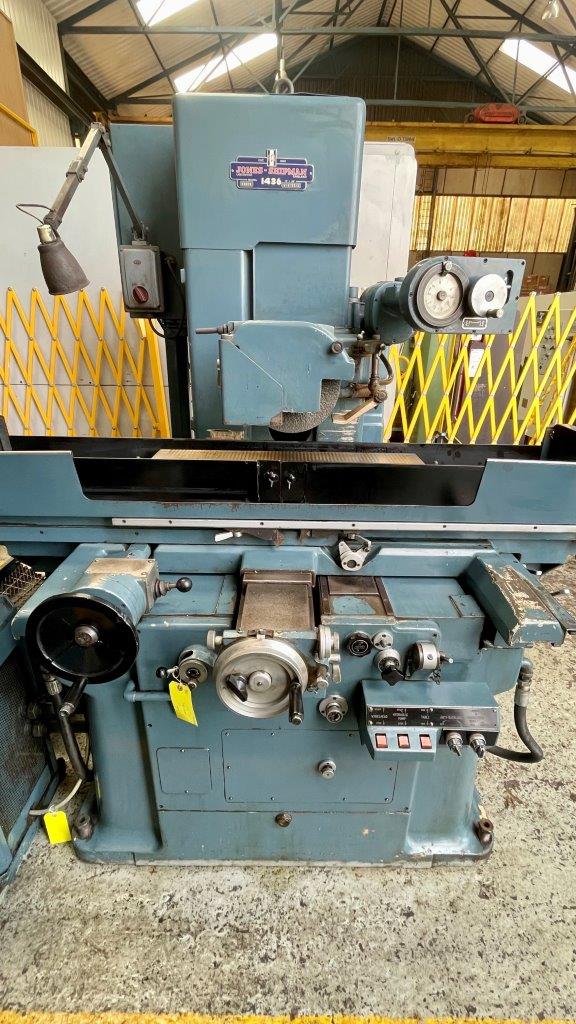

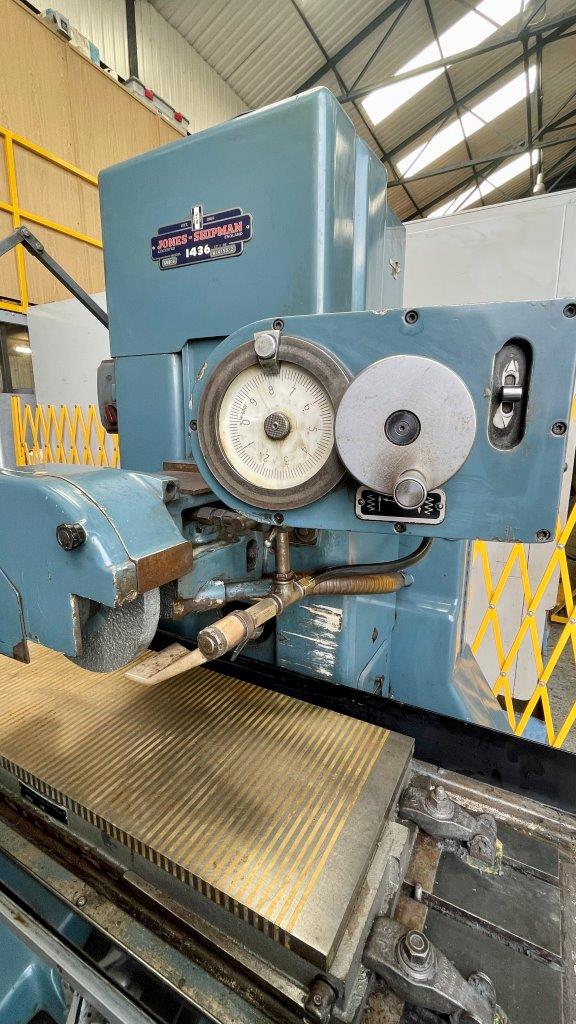

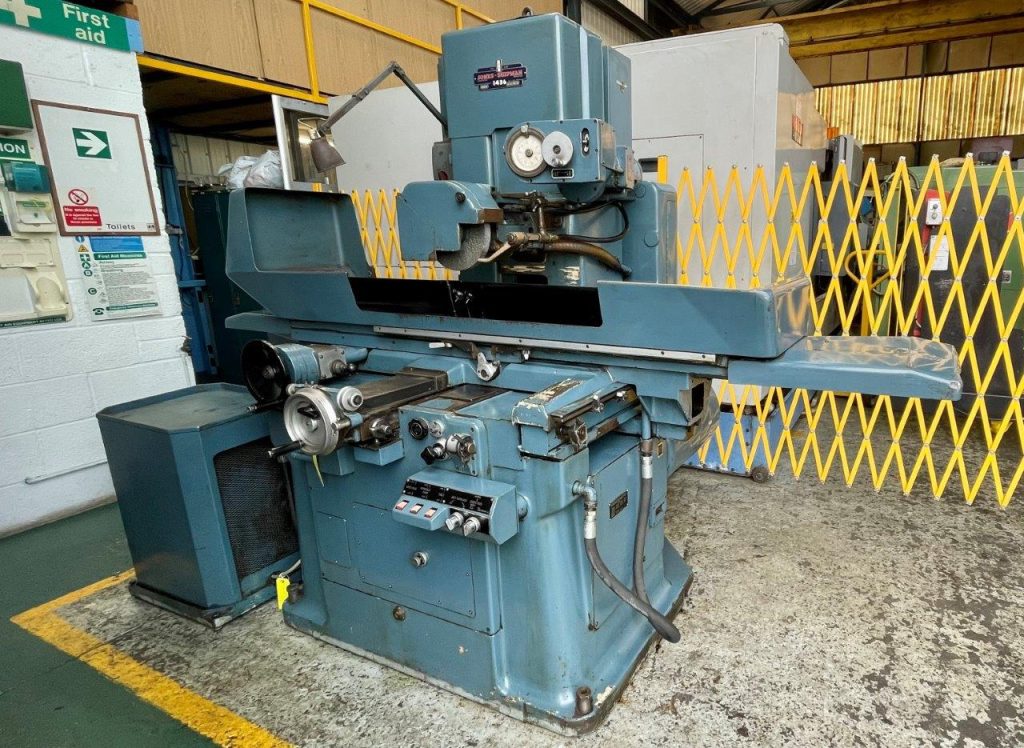

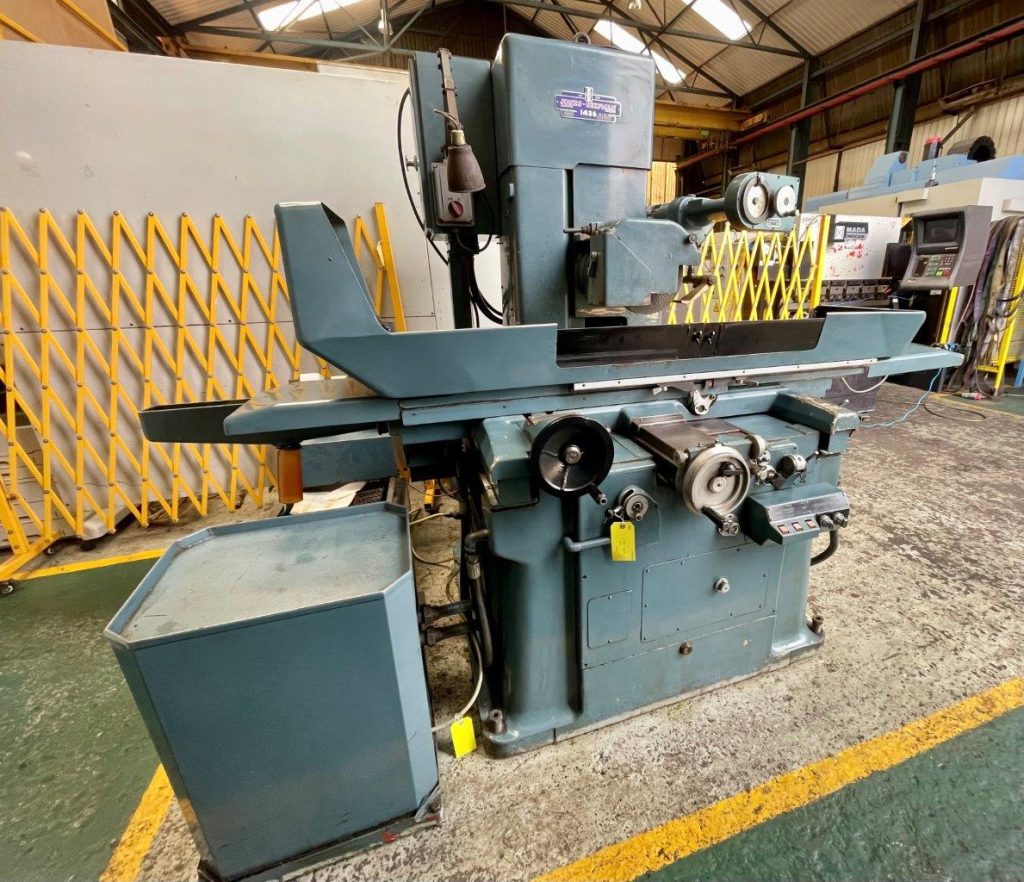

JONES & SHIPMAN 1436 SURFACE GRINDER (OUR REF 885)
| SPECIFICATIONS | |
|---|---|
| MAKE | JONES & SHIPMAN |
| MODEL | 1436 |
| TABLE SIZE | 279.0 mm x 914.0 mm |
| CAPACITY LONG TABLE TRAVERSE | 965.0 mm |
| TRANSVERSE TABLE | 286.0 mm |
| TRAVERSE VERTICAL | 305.0 mm |
| TABLE SIZE | 279.0 mm x 914.0 mm |
| CROSS FEED | 0,0025 mm |
| AUTOMATIC RANGE CRESS FEED | 0,381 to 25.0 mm |
| HYDRAULIC TABLE | 3 to 27 m/min |
| WHEEL SPEEDS | 3300 RPM |
| MOTOR | 5.5 hp |
| STANDARD GRINDING WHEEL | 254.0 mm x 51.0 mm x 76.0 mm |
| MACHINE DIMENSIONS | 3,607 mm x 2,235 mm x 2,083 mm |

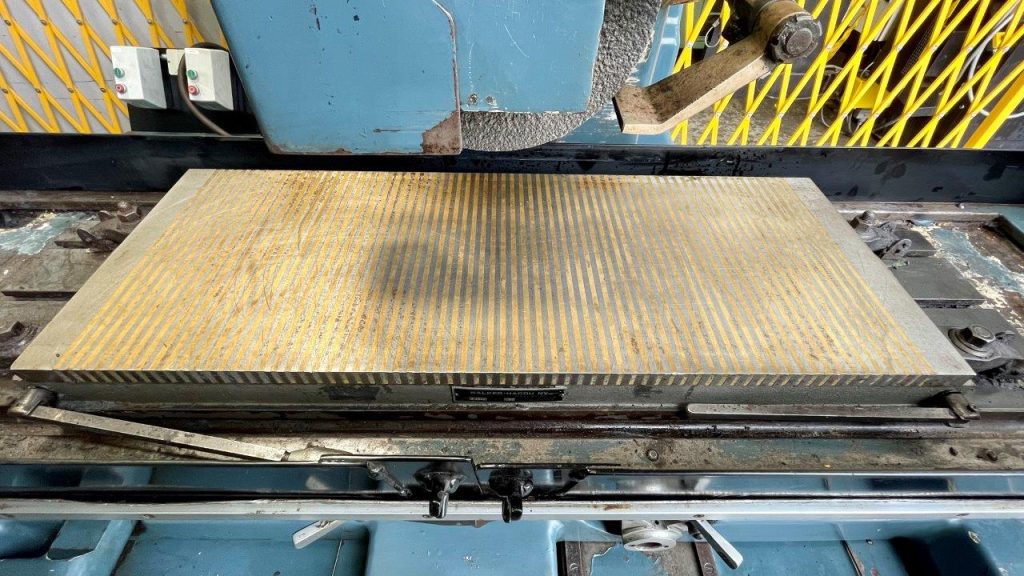

| PLUS | AUTOMATIC DOWN FEED MACHINE CLOSED LOOP WALKER MAGENTIC CHUCK POWER RISE AND FALL PHILIPS FILTRATION SYSTEM |
