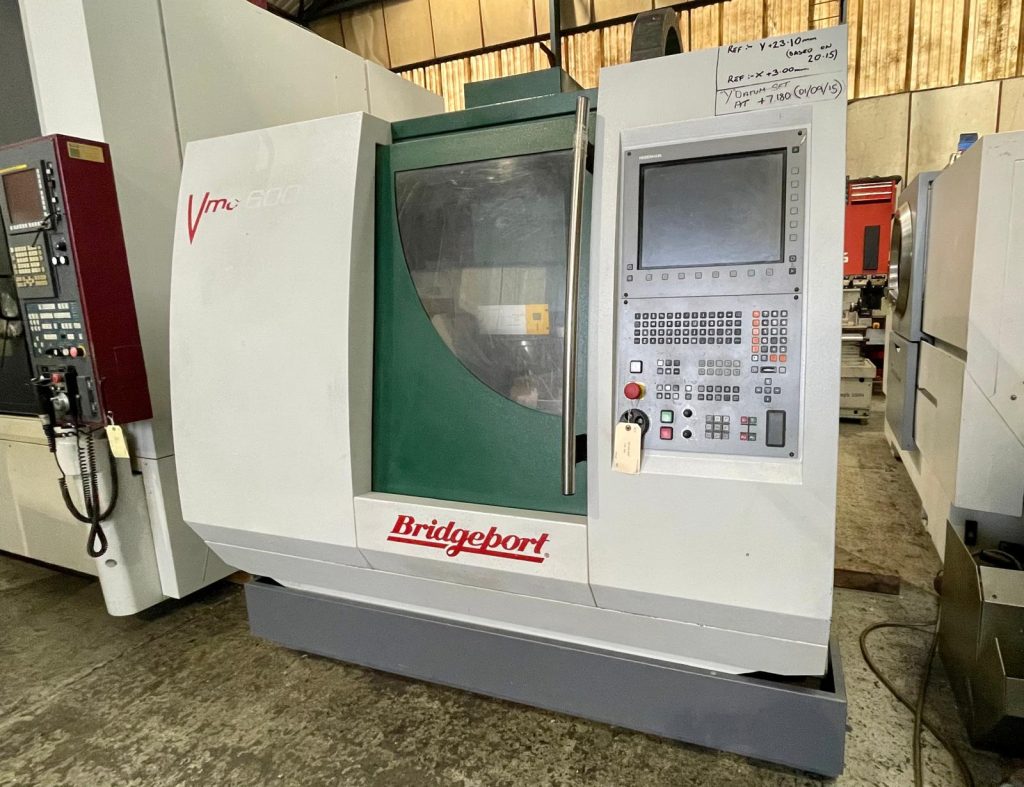

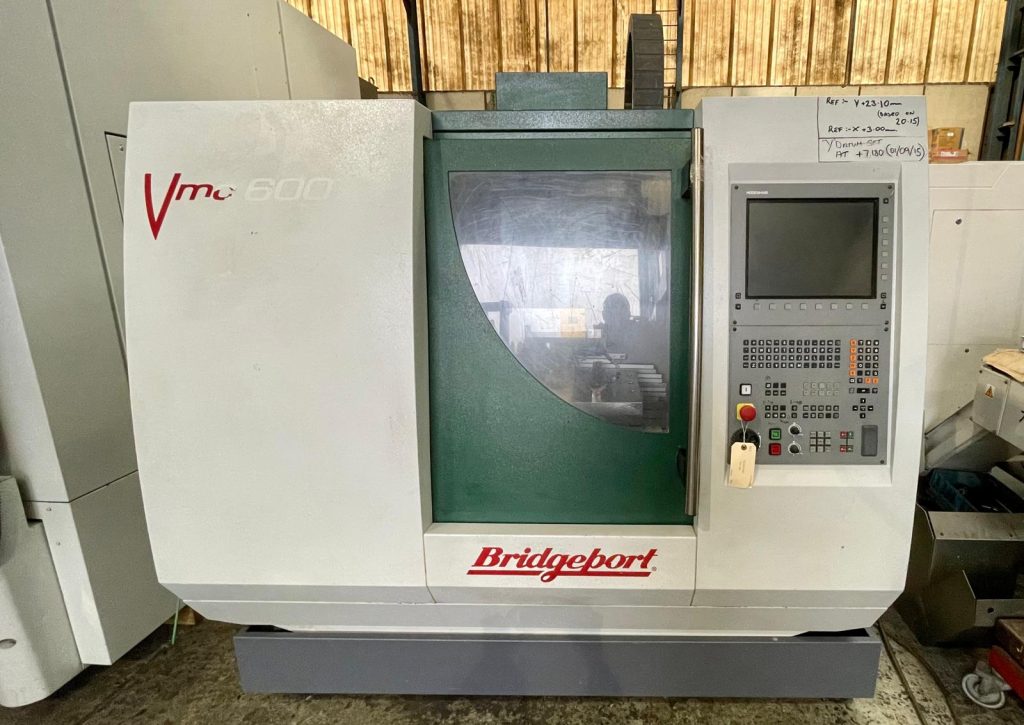

BRIDGEPORT 600 VMC (REF 957)
SPECIFICATIONS | |
---|---|
MAKE | BRIDGEPORT, MADE IN UK |
MODEL | 600 XP |
YEAR | 2002 |

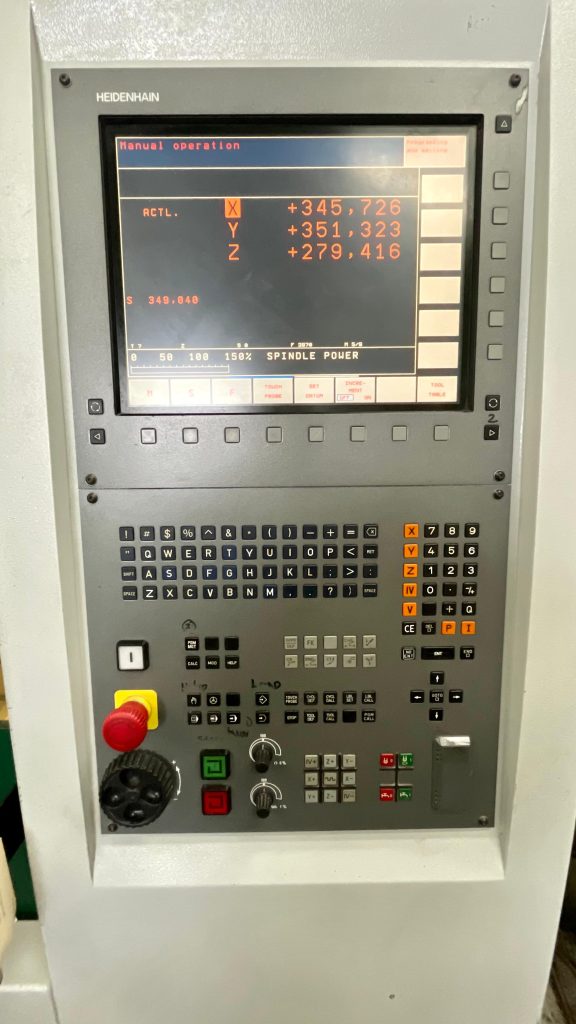

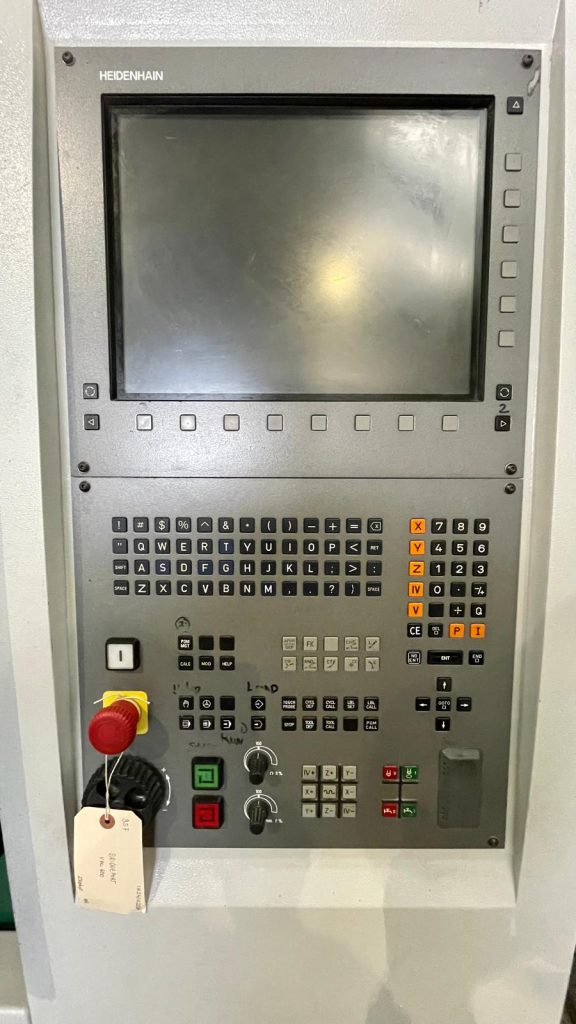

CONTROL | HEIDENHAIN ITNC 530 CNC CONTROL |
TABLE SIZE | 840 x 420 mm |
TRAVLERS | X: 600 mm Y: 410 mm Z: 520 mm |
SPINDLE | BT 40 |
SPINDLE SPEEDS | 0-10,000 rpm |
SPINDLE MOTOR | 11.5 Kw |
RAPID FEED RATED | X/Y AXES 40m/min |
RAPID FEED RATE | Z AXES 20m/min |
MAXIMUM TABLE LOAD | 500 KG |
ATC | 22 STATIONS |
TOOLCHANGER TIME | 5.2 SECONDS |
PLUS | COOLANT TRAY WORK LIGHT HAND WHEEL FULL SET OF MANUALS WORKED ONLY ON WOOD AND PLASTIC |
